Overview

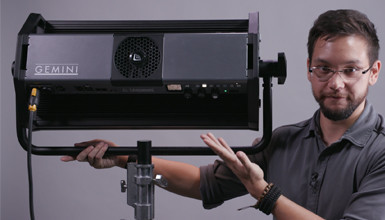

The Litepanels Gemini 2x1 RGBWW LED Soft Panel is a 2' x 1' LED light panel that provides a nice, wide, soft source of color accurate illumination. Staying true to the Litepanels legacy, the Gemini has accurate, full spectrum Daylight and Tungsten lighting. The Gemini also allows for quick and easy adjustment by offering (3) full-featured lighting modes, full color with hue and saturation control, all of which allow for the intensity to be controlled anywhere from 0-100% at all times.
The Gemini is extremely versatile, with manual and remote control via standard DMX 512 protocol or wirelessly via DMX or Bluetooth, and can adapt to any lighting situation. The manual control knobs are sensitive to speed of rotation and can either be finely tuned or, when ramped up, adjusted very quickly. With its lightweight design, the Gemini enables additional versatility thanks to mobile power operation via 3-pin XLR input, making it a perfect location light.
Features:
- (3) Lighting Modes
- CCT (Correlated Color Temperature) mode allows for Bi-Color (Daylight to Tungsten) operation with the addition of plus and minus Green offset
- (6) defined CCT presets, plus (6) user programmers presets
- Gemini allows for the user presets on Channel "A", which records color and intensity
- Gemini also has factory presets on Channel "B", with increments from 2700K to 6000K
- HSI Color Mode allows for full color control over Hue, Saturation, and Intensity
- Gel Mode allows for a variety of gel effects to be selected from the menu
- CCT (Correlated Color Temperature) mode allows for Bi-Color (Daylight to Tungsten) operation with the addition of plus and minus Green offset
- Robust, lightweight metal frame and housing; aluminum core construction to provide maximum durability and superior thermal management
- Standard yoke with JR Pin for easy mounting and positioning; ability to stack and gang lights together with optional hardware and yoke (sold separately)
- Flexible, modular design with integrated power supply
- Energy efficient fixture draws only 325W (nominal)
- No heavy external ballast or restrike period
- AC/DC power with DC power input via 3-pin XLR
- Durable, industry standard PowerCon locking power connector with ability to daisy-chain power
- Flicker-free at any frame rate or shutter angle at any intensity level
- Ultra-smooth dimming from 0% to 100%, with zero color shift
- Integrated DMX (5-pin XLR or RJ45) allows for remote dimming and color control
- Wireless control via optional Wireless DMX or Bluetooth allow the brightness, color and cooling mode to be remote controlled
- Master Slave mode enables ueser to connect multiple lights together and control them all from one light as the master control
- Intuitive and ergonomic controls for dimming, color and fixture setup
- LCD screen displays vital setting and status
Firmware Update:
Download the April 2018 firmware update for your Litepanels Gemini 2x1 RGBWW LED Soft Panel. This firmware update includes a unique Lighting Effects Mode for adding the following fully customizable effects:
- TV Stimulation
- Hue Burst
- Paparazzi
- Strobe
- Fire
- Squares
- Fireworks
- Emergency Lights
- Pulse
- Party Lights
You can control rate, color, depth, and other factors to craft a unique look. Effects can be saved to presets for easy recall and the presets can then be saved to your USB drive for easy porting to other lights.
What's in the Box
- PowerCon Power Cord
- Yoke Mount
- Litepanels Gemini Fixture w/ Internal Power Supply
Specifications
Key Highlights
- 2x1 RGBWW LED Soft Panel
- (3) Lighting Modes
- Accurate Daylight & Tungsten output
- 0-100% dimmable
- 100-240V AC power option
- XLR 3-pin DC power option
- Standard yoke with JR Pin mounting
