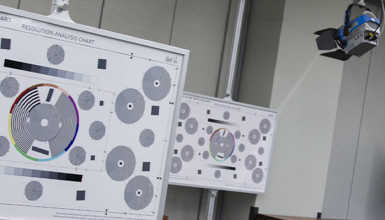

Cameo 40" Resolution Analysis Chart

High-resolution cameras and lenses require analysis tools that are more informative than the legacy charts commonly used today. The inherent limitations of star-like patterns make it extremely challenging to determine accurate, repeatable measurements of any cameras and lenses that resolve 2K, 4K, and higher. AbelCine has designed a system that solves this challenge. The Cameo Resolution Analysis Chart provides many additional evaluation capabilities for camera techs, camera assistants and equipment owners.

The charts are available in multiple sizes to accommodate all working conditions, ranging from rental house, and service environments to field use. This Resolution Analysis Chart is 40" wide.

Customize this chart with your company logo for an additional $200.00.

Resolution Analysis Charts include:

Discrete, Logarithmically Progressed Frequencies – for accurate, easy-to-read focus of all focal lengths and all resolutions

Circular Patterns, Symmetrical Layout – to reveal differences in resolution across different axes and areas of the frame

Multiple Aspect Ratios – provides markings for:

• 16:9
• 1.85:1
• 2.39:1
• 4:3

Colors and Grayscale – provides colors correlating to the (6) primary and secondary axes on a vector scope, as well as skin tones and progressive grayscales

Frame-Relative Units of Measurement

All resolution measurements are printed in frame-relative units of Line Pairs per Picture Height (LP/PH), so no knowledge of the camera's sensor dimensions is needed to get readings that can be compared to readings from a different sensor. As a result, it is not necessary to measure the distance between the camera's focus plane and the chart or know the precise lens focal length to achieve accurate readings.

The system also provides slant edge targets to support software MTF analysis.

Features:

• Measures 41 x 26" (104 x 66cm)
• Designed for rental house settings and other camera/lens test environments
• Convenient size for testing wide focal lengths
• Half-size inner frame for testing telephoto focal lengths
• Frequencies for testing up to 4K resolution
• Color for camera matching
• Custom logo option available for an additional $200
