Overview
Overview

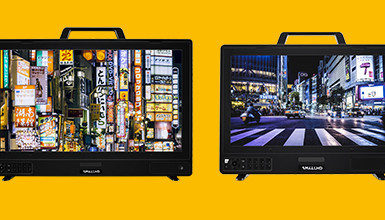

The SmallHD OLED 22" 4K Reference Monitor is a stunning new entry into the reference monitor space and SmallHD's new standard for color perfectionists. Featuring a >1,000,000:1 contrast ratio with an absolute black point, and 100% P3 / 135% Rec 709 color gamuts that generate beautiful, true-to-life color accuracy. OLED 22 has virtually no image degradation at any viewing angle, providing a real-time image as vivid and pristine as the final output.
PageOS 4 Software Platform
- 4K HDR waveform and scopes*
- Dual & Quad-view*
- Color Pipe HDR color rendering
- Monitor Calibration Wizard
Unibody Smart Chassis
- Smart rail for battery and accessory mounting
- Interchangeable mounting points
- (2) 2-pin accessory power outputs
Flexible Power Options
- Hot-swappable dual inputs:
- (1) 3-pin XLR
- (1) Dual-GM/VM Battery Plate (sold separately)
Small4K Video Processing Architecture
- Inputs: (4) 12G-SDI, (1) HDMI 2.0
- Outputs: (4) 12G-SDI, (1) HDMI 2.0*
Features:
- 21.6" (55cm) OLED
- 3840 x 2160p Resolution
- >1,000,000:1 Contrast
- 350 nits brightness
- 10-bit Color Depth
- Weight: 9.35 lb (4.2 kg), with handle & feet
What's in the Box
- SmallHD OLED 22" 4K Reference Monitor
Specifications
Specifications
Key Highlights
- 21.6" OLED Reference Monitor
- 3840 x 2160p
- >1,000,000:1 Contrast
- 350 nits brightness
- 10-bit Color Depth
Connectors
Input Connector/Port:
1 x 3-pin XLR
Inputs & Outputs
Audio I/O:
1 x Audio Output - 3.5mm Headphone Jack (Stereo)
Monitors
Monitor Resolution:
3840x2160
Monitor Input:
RJ-45 Modular Connector - GPI
4 x 12G-SDI - BNC
1 x HDMI - 2.0 (4K60)
Monitor Size:
21.6" - 55cm
Monitor Features:
SD Card Slot
Monitor Brightness:
350Nits
Monitor Type:
OLED
Color Notes:
100% DCI-P3 color space
True 10-bit color depth
Power
Input Voltage:
12-34 V DC
Power Output:
1 x Specialty - 2x 2pin (12V / 2A combined) 2x USB (5V / 2.4A) (Front/Rear) 1x USB-C (5V / 1.5A)
